Getting Started with Android Studio

1. Introduction

Android Studio is the official Integrated Development Environment (IDE) for Android app development. It provides tools for developing, debugging, and packaging Android apps. This tutorial will guide you through the process of creating your first app, from setting up your environment to publishing your app on the Google Play Store.

2. Installing Android Studio

• Download Android Studio: Visit the official Android Studio download page and download the latest version for your operating system.
• Install Android Studio: Follow the installation instructions for your OS. During installation, ensure you install the Android SDK, Emulator, and additional libraries.

3. Configuring Android Studio

• Start Android Studio: Open Android Studio and go through the initial setup wizard.
• SDK Manager: Open the SDK Manager (found under "Configure") and ensure you have the latest SDK versions and tools installed.

Understanding the Basics of App Development

1. Android App Components

• Activities: Single screens with a user interface.
• Services: Background processes that run without a user interface.
• Broadcast Receivers: Components that respond to system-wide broadcast announcements.
• Content Providers: Manage shared app data.

2. Key Concepts

• Intents: Messaging objects used to request an action from another app component.
• Resources: External elements like strings, images, and layout files used in your app.

Setting Up Your Project Environment

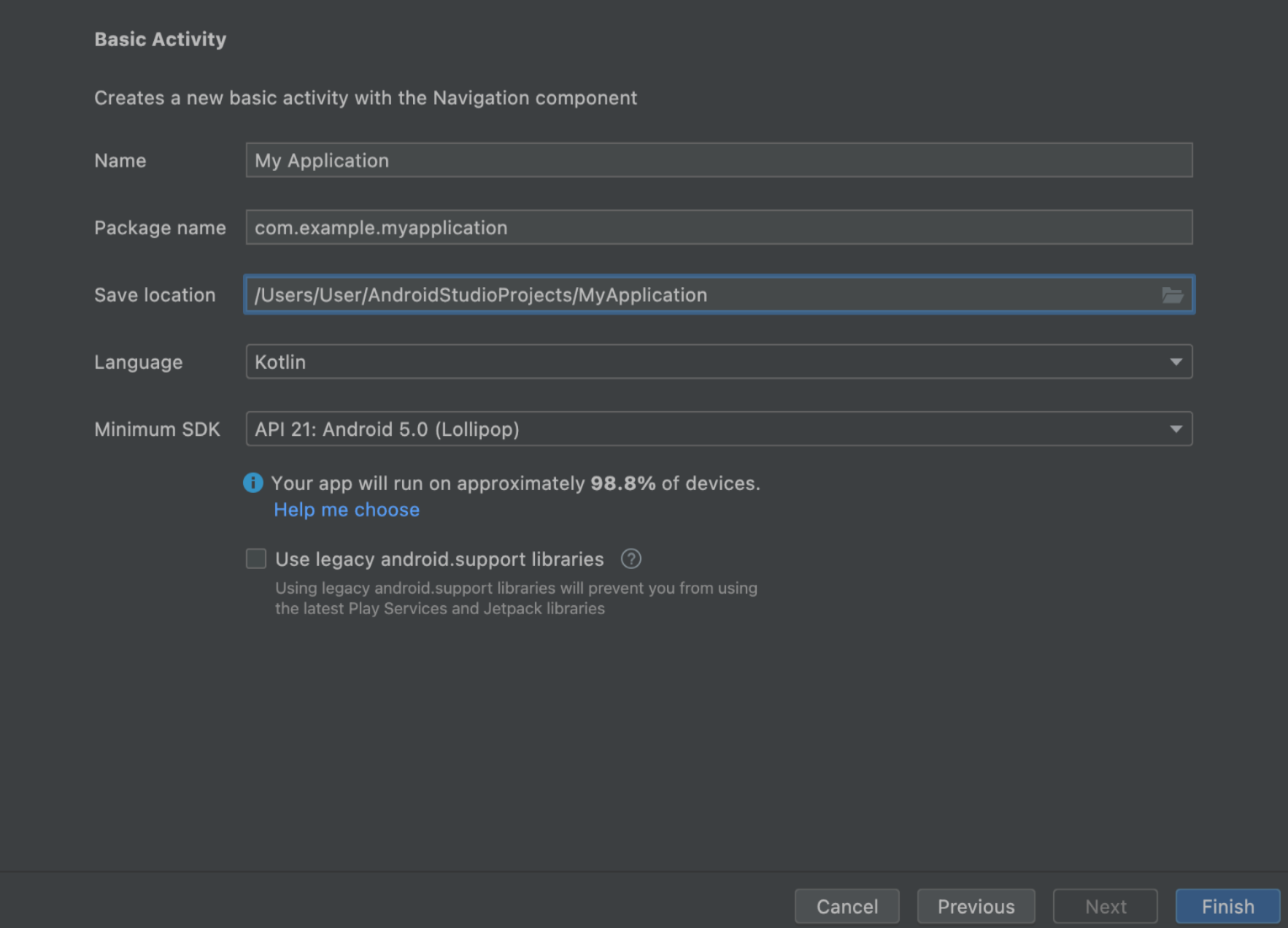

1. Creating a New Project

• Start a New Project: Click on "Start a new Android Studio project."
• Configure Your Project: Set the application name, company domain, and project location.
• Select Form Factors: Choose the device types your app will run on (Phone, Tablet, Wear, TV).
• Add an Activity: Select a template for the main activity (e.g., Basic Activity).

2. Project Structure

• Project Files: Familiarize yourself with the project structure in the Project window.
  • Java (or Kotlin) Files: Located in src/main/java.
  • XML Layout Files: Located in src/main/res/layout.
  • Manifest File: AndroidManifest.xml, which defines the app’s structure and components.

Creating the User Interface

1. Designing Layouts

• XML Layouts: Define the UI using XML.
• Layout Editor: Use the drag-and-drop interface to design your UI.

2. Common UI Elements

• TextViews: Display text to the user.
• EditTexts: User input fields.
• Buttons: Perform actions when clicked.
• RecyclerViews: Display scrollable lists.

3. Example: Simple Login Screen

• activity_main.xml: Define a layout with EditText fields for username and password, and a Button for login.

xml

Copy code

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" android:padding="16dp"> <EditText android:id="@+id/username" android:layout_width="match_parent" android:layout_height="wrap_content" android:hint="Username"/> <EditText android:id="@+id/password" android:layout_width="match_parent" android:layout_height="wrap_content" android:hint="Password" android:inputType="textPassword"/> <Button android:id="@+id/login_button" android:layout_width="match_parent" android:layout_height="wrap_content" android:text="Login"/> </LinearLayout>

Implementing Functionality with Java

1. Writing Java Code

• MainActivity.java: Handle user interactions and define app behavior.

2. Adding Event Listeners

• OnClickListener: Respond to button clicks.

java

Copy code

public class MainActivity extends AppCompatActivity { private EditText usernameEditText; private EditText passwordEditText; private Button loginButton; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); usernameEditText = findViewById(R.id.username); passwordEditText = findViewById(R.id.password); loginButton = findViewById(R.id.login_button); loginButton.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { // Handle login logic here String username = usernameEditText.getText().toString(); String password = passwordEditText.getText().toString(); if (validateLogin(username, password)) { // Proceed with login } else { // Show error } } }); } private boolean validateLogin(String username, String password) { // Simple validation logic (example) return !username.isEmpty() && !password.isEmpty(); } }

Adding Features and Enhancements

1. Adding Navigation

• Navigation Components: Use the Navigation component to handle fragment transactions and navigation within the app.

2. Using Third-Party Libraries

• Dependency Management: Add dependencies via the build.gradle file.
• Popular Libraries: Retrofit (for network operations), Glide (for image loading).

Testing and Debugging Your App

1. Testing Your App

• Unit Tests: Write tests to verify individual units of code.
• Instrumented Tests: Test the app on a device or emulator.

2. Debugging Tools

• Logcat: View logs and debug information.
• Breakpoints: Pause execution to inspect variables and control flow.

Optimizing Performance and User Experience

1. Performance Optimization

• Profilers: Use Android Profiler to monitor CPU, memory, network, and battery usage.
• Code Optimization: Refactor code and use efficient algorithms.

2. Improving UX

• Responsive Layouts: Ensure your app works well on different screen sizes.
• Animations: Add animations to improve user experience.

Publishing Your App on the Google Play Store

1. Preparing for Release

• App Signing: Sign your app with a release key.
• Versioning: Set versionCode and versionName in build.gradle.

2. Publishing Steps

• Google Play Console: Create a developer account and access the Google Play Console.
• Upload APK: Upload your signed APK or AAB.
• Store Listing: Provide app details, screenshots, and other required information.
• Submit for Review: Submit your app for Google’s review process.

Conclusion: Take Your App Development Skills to the Next Level

Congratulations! You've learned the basics of building an Android app with Android Studio. Continue exploring advanced topics, such as integrating backend services, using advanced UI components, and following best practices for security and performance. Happy coding!
